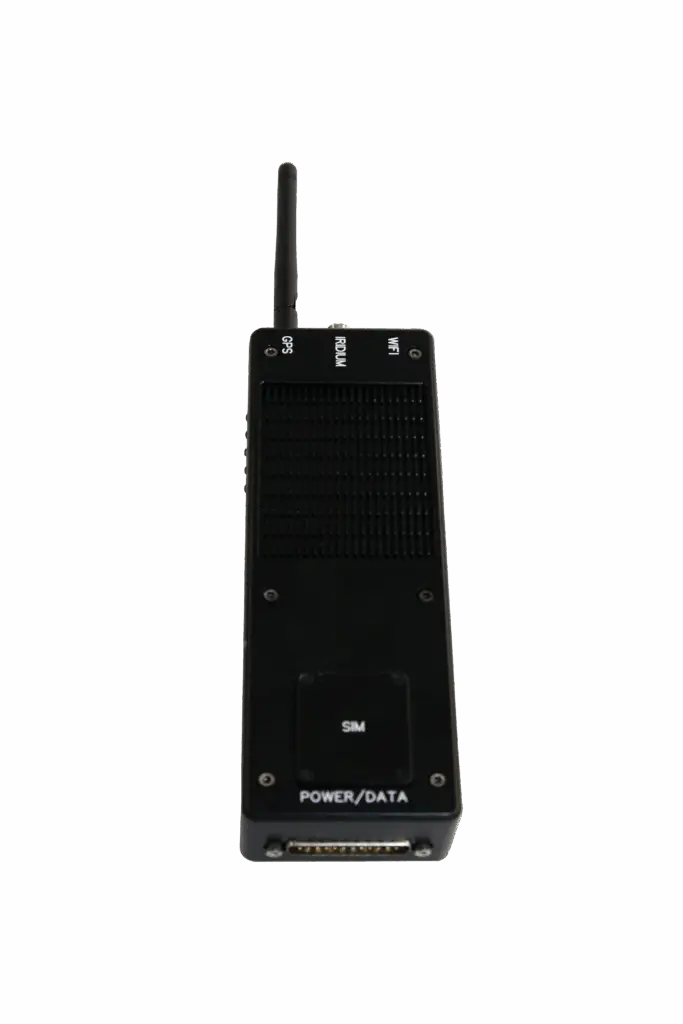

Satellite terminal providing pole-to-pole satellite connectivity for beyond-line-of-sight operations.…
9602
Lightweight satellite trackers delivering connectivity to high-value, untethered, and non-powered assets.
9602

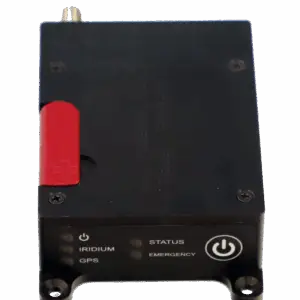

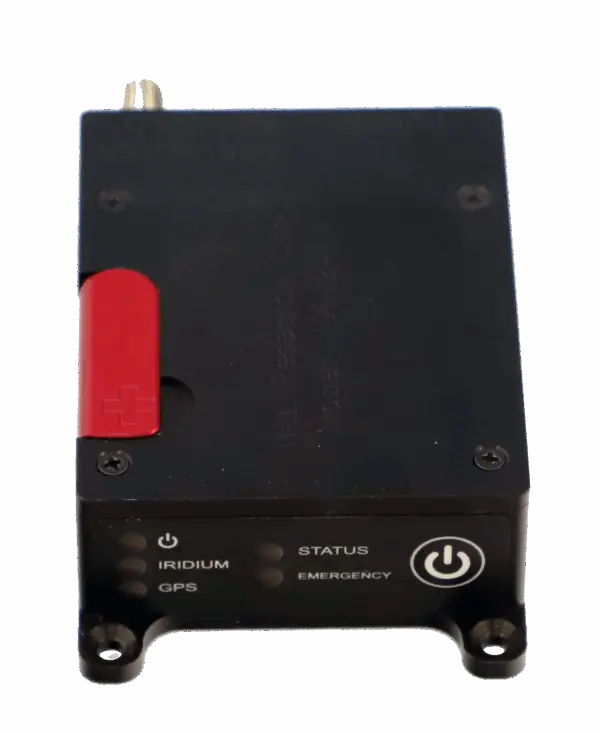

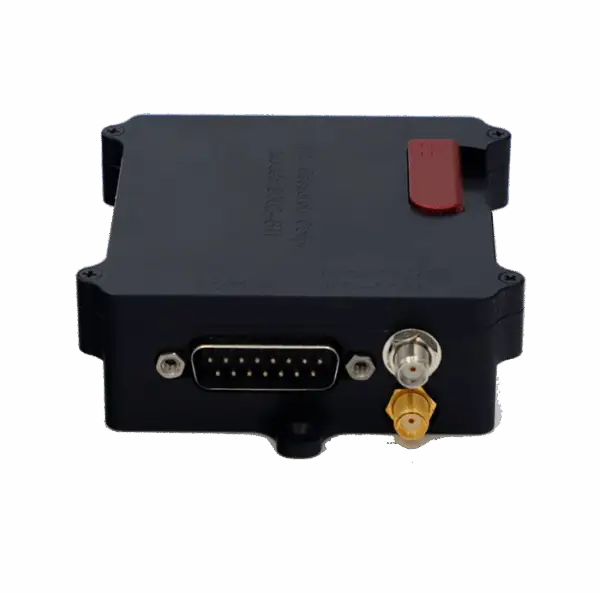

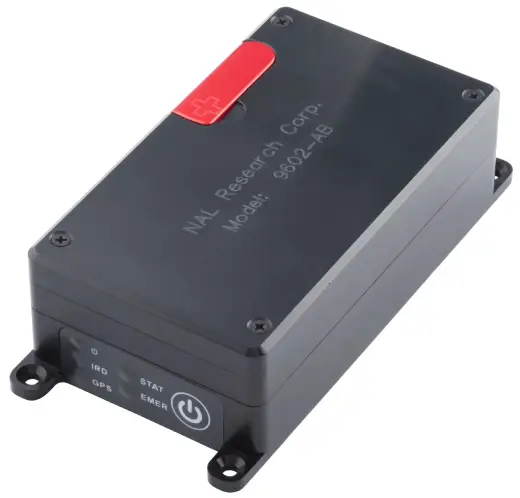

9602-LP, 9602-A, 9602-AB, 9602-BTI, 9602-NAL
The 9602 satellite trackers by NAL Technologies are low size, weight, and power (SWaP) solutions leveraging Iridium’s Short Burst Data® (SBD®) services to provide cost-effective connectivity for commercial and government customers.
Details
The self-contained 9602 units are designed for ultra-low power consumption and can send secure GPS reports at pre-programmed intervals, which can be configured remotely while the tracker is deployed. Safeguard crew and assets with a guarded emergency switch that alerts the recipient of an emergency situation. Other 9602 modems include SBD-only, a durable weather-resilient tracker, and variants capable of sending reports at longer durations.

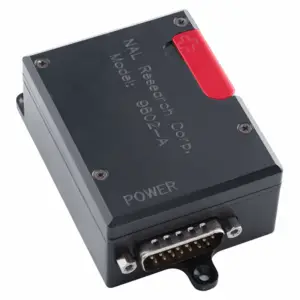

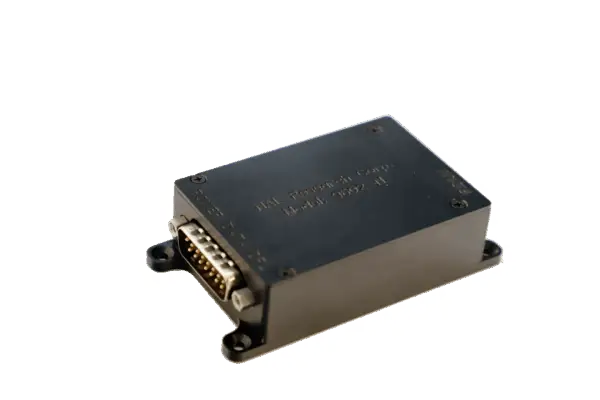

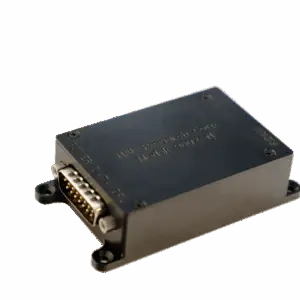

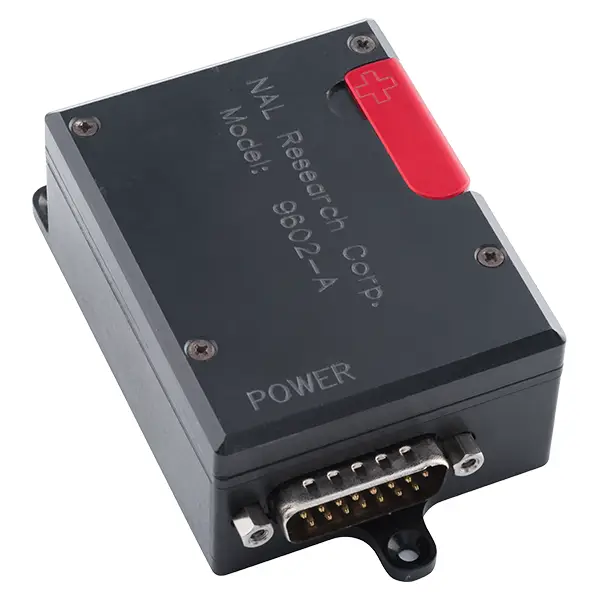

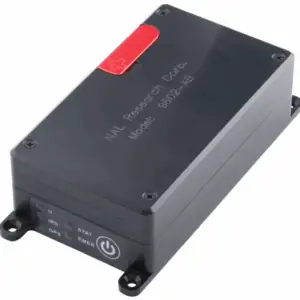

The 9602 product line includes the following models: 9602-A, 9602-AB,9602-BTI, and 9602-NAL.
Features
- Standby current of less than 65µA
- Wide input voltage range from 5V to 32V
- 256-bit AES encryption
- Internal motion sensor
- Two RS232 level I/Os for sensor interfaces
- Seven TTL/CMOS level I/Os for sensor interfaces
- 50-channel GPS receiver with -160dBm sensitivity
- Programmed for either Commercial or DoD Gateway
- Supports NAL Technologies and PECOS formats
- Guarded emergency switch
- Easy installation
- Real-time, pole to pole coverage
Technical Specifications
- Dimensions: 2.73” L x 2.17” W x 0.94” D (69 mm x 55 mm x 24 mm)
- Weight: 4.8 ounces (136 grams)
- Input Voltage Range: 3.6VDC – 5.5VDC or 6.0VDC – 32VDC
- Input Nominal Voltage: 5.0VDC
- Power Consumption: < 65µA between reports @ 5.0VDC
- Operating Temperature: -400F to +1850F (-400C to +850C)
- Operating Humidity: < 75% RH
Documentation
Quick Start Guide
User Guide
For documentation of all 9602 products, please visit the support section
