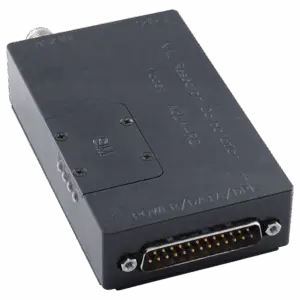

A3LA-RG

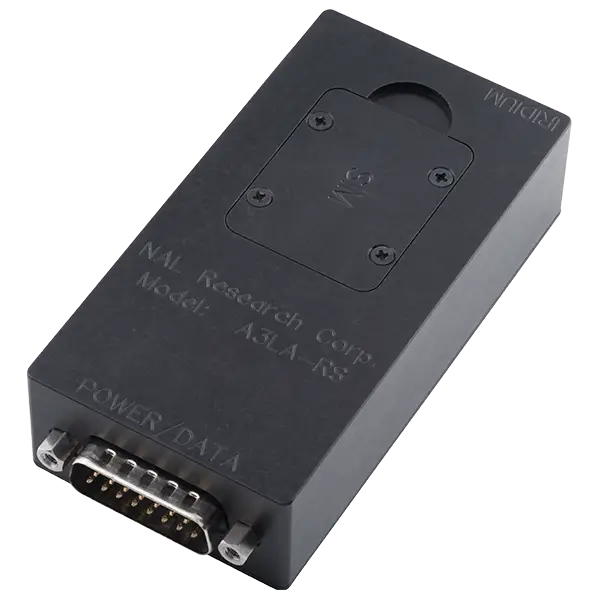

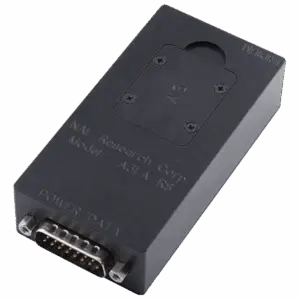

A3LA-RS
A3LA - Image 3

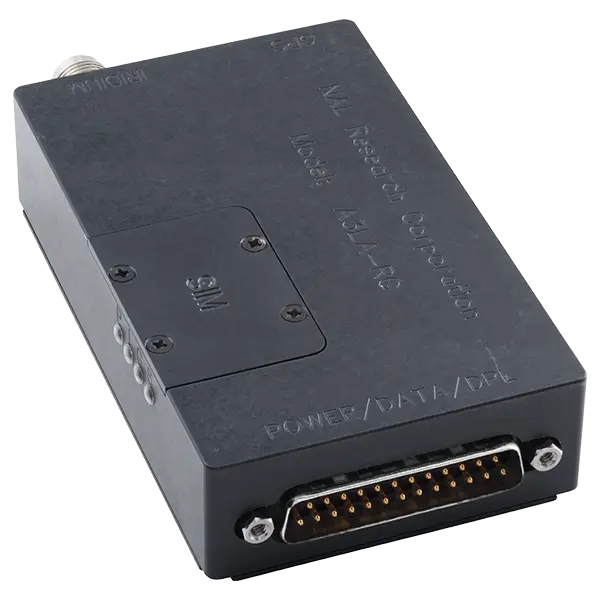

A3LA-RG-MIL
A3LA-RM-MIL

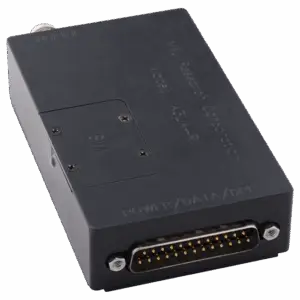

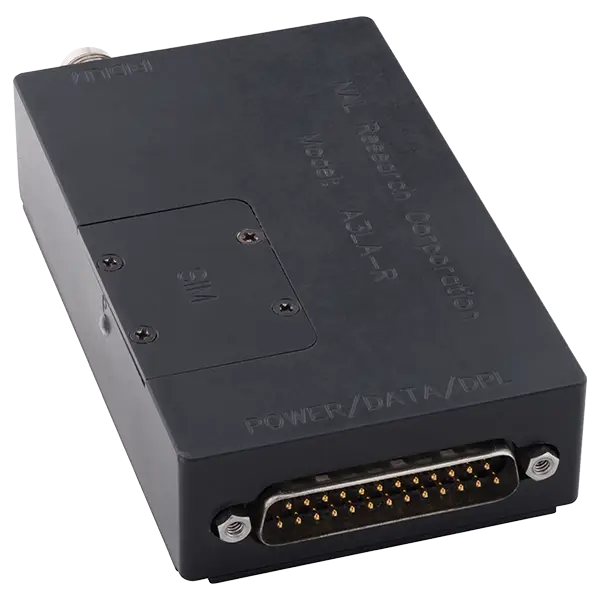

A3LA-R

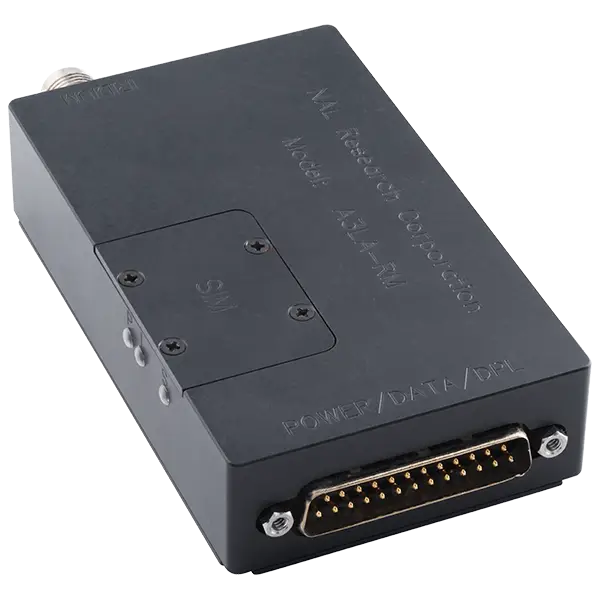

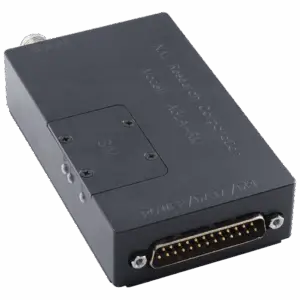

A3LA-RM

A3LA

A3LA-RG, AL3A-RG-MIL, A3LA-R, A3LA-R-MIL, A3LA-RM, A3LA-RM-MIL, A3LA-RS

NAL Technologies’ (Naltec) A3LA product line is an affordable, low size, weight, and power (SWaP) modem enabling SMS, data switch, Iridium Short Burst Data® (SBD®), and RUDICS connectivity to the Iridium satellite network.

Details
Each A3LA modem uses AES-256 bit encryption to ensure secure communications. With a connected DPL handset, most A3LA solutions can place voice calls similar to an Iridium 9555/9575 phone. Engineered to support the success of any operation, NAL Technologies offers A3LA variants with an internal GPS receiver (A3LA-RG), data only (A3LA-RS), or certification to MIL-STD-810G standards (A3LA-R-MIL, A3LA-RG-MIL, A3LA-RM-MIL) and IP67 rating. Other available A3LA product models include: A3LA-R, A3LA-RM
  • Low-cost
  • Low size, weight, and power (SWaP)
  • RS232 interface
  • AES-256 bit encryption
  • Capable of monitoring network status to prevent lock-up
  • Allows SBD, SMS, Data Switch and RUDICS connectivity to the Iridium satellite network.
  • Dimensions: 4.0” x 2.43” x 0.95” (102 mm x 61 mm x 24 mm)
  • Weight: 7.1 ounces (201 g)
  • Data/Power Interface:  25-Pin D-Sub
  • Antenna Interface: TNC female connector for Iridium, SMA female connector for GPS
  • Enclosure: Hard-anodized aluminum (EMI/EMC shielded)
  • Input Voltage Range: 4.0V to 5.4V or 5.0V to 32V
  • Nominal Input: 5VDC
  • Idle Power: 175mA @ 5V
  • Transmitted Power: 420mA @ 5V
  • Iridium Transceiver: Iridium 9523
  • GPS Receiver: u-blox MAX-6Q
  • Operating Temperature:  22oF to +158oF (30oC to +70oC)
  • Operating Humidity: < 75% RH
Quick Start Guide User Guide For a list of technical documents for each A3LA variant, please visit our support section
