SHOUT nano

A personal GPS tracking device for enhanced safety and monitoring of remote crew and assets
Schedule a demo
SHOUT nano - Image 1

SHOUT nano

SHOUT nano, SHOUT nano-BTI

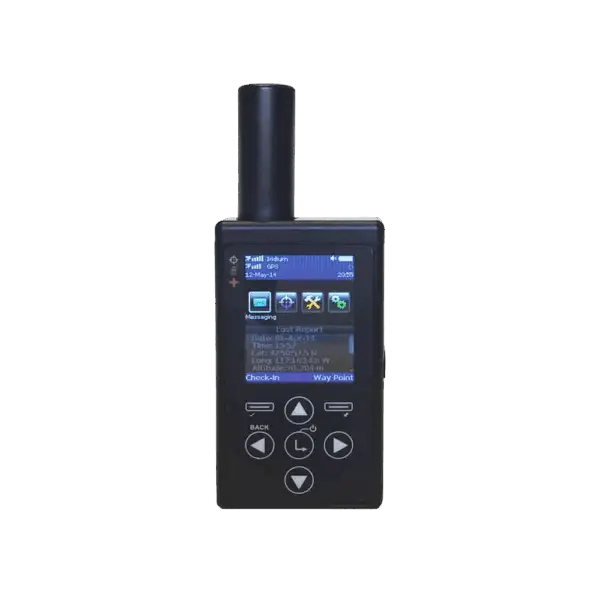

SHOUT nano is a rugged, handheld personal tracker delivering reliable location and communication coverage anywhere on Earth. Whether your crew is monitoring oil lines in remote environments or conducting geologic surveys in harsh deserts, maintain total oversight for asset and team safety.

Details
Designed for the demands of lone workers, SHOUT nano sends all data to SkyRouter, NAL Technologies’ (Naltec) interactive web portal, giving you instant visibility into every person and asset—along with the ability to communicate with them in real time, anywhere in the world. With configurable position reporting and an extended battery life, this compact and lightweight solution provides enhanced safety and total visibility. SHOUT nano-BTI is a variant of SHOUT nano that is designed with a rugged screen protector to support more tactical missions.
  • Send messages from SkyRouter to each PT
  • Ultra-low power consumption
  • Automatic position reports (>1200 on one battery charge)
  • QPOS
  • Flip-guarded panic button
  • Waypoint soft key (easily mark points of interest/danger)
  • Check-in soft key
  • Able to send 300-character e-mail messages
  • Real-time, pole-to-pole coverage
  • Easy battery charging: AC adapter and USB
  • Over-the-air firmware upgrade option
  • Dimensions: 4″ x 2.2″ x 0.8″
  • Weight: 6.5 ounces
  • GPS Receiver Type: 1575.42 MHz (L1), 50 channel, C/A code
  • Accuracy: 2.5 m CEP
  • Update Rate: 4Hz
  • Start-up Times: < 1 second hot start; 29 second warm/cold start
  • Sensitivity: -160dBm
  • Input Voltage Range: 2.7VDC to 5.5VDC
  • Input Nominal Range: 4.0VDC
  • Power Consumption: Less that [email protected] during standby
  • GPS Receiver Type: 1575.42 MHz (L1), 50 channel, C/A code
  • Accuracy: 2.5 m CEP
  • Update Rate: 4Hz
  • Start-up Times: < 1 second hot start; 29 second warm/cold start
  • Sensitivity: -160dBm
  • Input Voltage Range: 2.7VDC to 5.5VDC
  • Input Nominal Range: 4.0VDC
  • Power Consumption: Less than [email protected] during standby
  • Power Input Type: External DC power or internal battery
  • Operating Temperature: -40°F to 185°F (-40°C to 85°C)
  • Operating Humidity: <75% RH
  • Operating Frequency: 1616 to 1616.5 Mhz
  • Link Margin Downlink: 13 dB average
  • Link Margin Uplink: 7 dB average
  • Average Power Transmission: 1.0 W
User Guide
Inquire
Download Brochure
