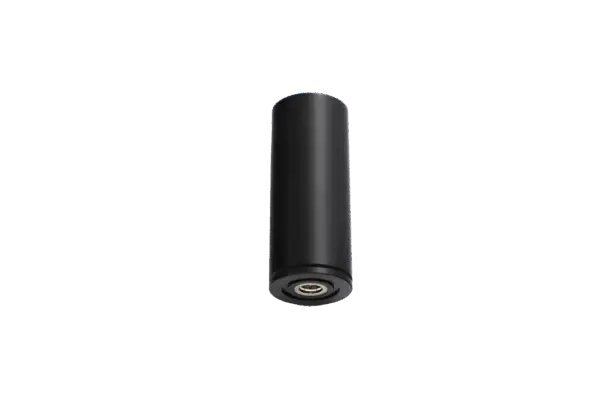

Quicksilver Antenna: SAF9700

Standard low-profile Quicksilver stub antenna
Schedule a demo

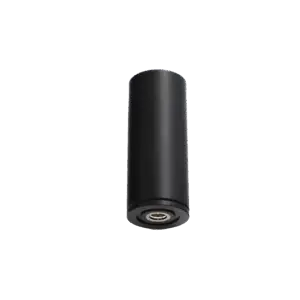

Quicksilver Antenna: SAF9700 - Image 1

Quicksilver Antenna: SAF9700

SAF9700

SAF9700 is a dielectric-loaded decafilar-helix antenna which uses distinctive material technology to provide the highest available efficiency in a small size.

Details
The dielectric core,  together with the fly-wheeling effect of the advanced decafilar helical design, provides excellent beamwidth and low elevation gain, which is maintained in relatively cluttered use scenarios. SAF9700 acts as its own filter, attenuating signals from common cellular and ISM frequencies by as much as 30dB.
• Designed for installation with 10mm gap from antenna side to host PCB ground-plane • Filters against interference from cellular and ISM bands • Balanced design rejects common mode noise from ground plane • SMA male connection to device PCB
  • Frequency: 1621.0 MHz
  • Gain (RHCP): 2 dBic at zenith
  • Beamwidth: >190°
  • Bandwidth: 60 MHz
  • Axial Ratio: <1.5 at zenith
  • VSWR: <2.0:1
  • Impedance: 50 Ohms
  • Operating Temperature: -40°C – +85°C
  • Weight: 34g (1.19oz)
