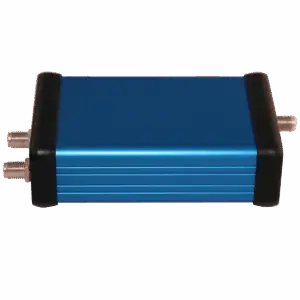

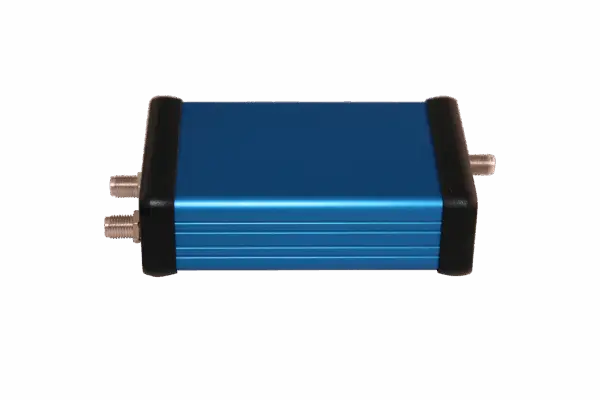

ALTM GEN2 Eval Kit
ALTM GEN2 Eval Kit
The Alternative Location and Timing Module (ALTM) GEN2 Eval Kit is an APNT by Naltec solution enabling ease of integration of any NAL Technologies (Naltec) ALTM receiver (Micro-D, ALTM-T or GEN4).
Details
Features

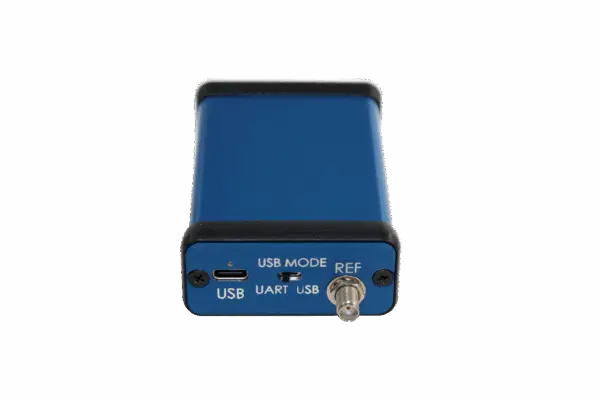

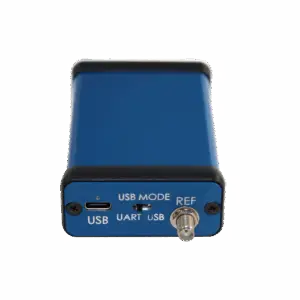

- Streams PNT data via NMEA messages over USB or UART serial

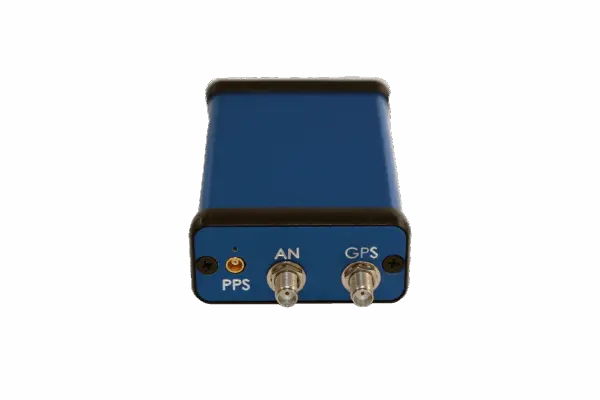

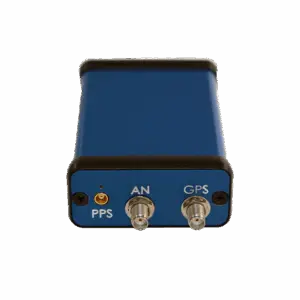

- A 1PPS output for timing performance analysis
- Provides a reference GNSS receiver for easy performance analysis
- Cable Assembly (CBLA032), BNC – MCX Plug-PLG
- Cable Assembly (CBLA034), USB Type-A to Type-C 6′
- Power Adapter, Wall Mount
- Iridium/GPS Antenna providing continuous coverage
- from 1610.0 – 1626.5 MHz specifically for the Iridium network and 1575.42 ± 13 MHz (L1) for GPS
Technical Specifications
- Dimensions: 5.41” x 3.19” x 1.20” (137.4 x 81 x 30.4 mm)
- Operating temperature: -20C to -60C
- Barrel connector: 6-20V 2A max current
- USB connectors: 5V 1.2A max current
- PPS output: 3.3V 20mA drive
- PPS input: 3.3V, internal 100kΩ pull-down
- GPS bias: 3.3V/5V configurable, 40mA max supply
- IRD bias: 3.3V/5V configurable, 40mA max supply
