ALTM GEN4
ALTM GEN4

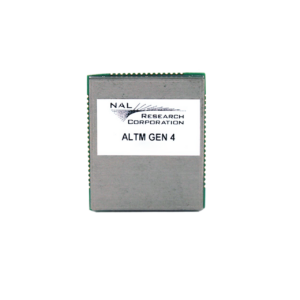

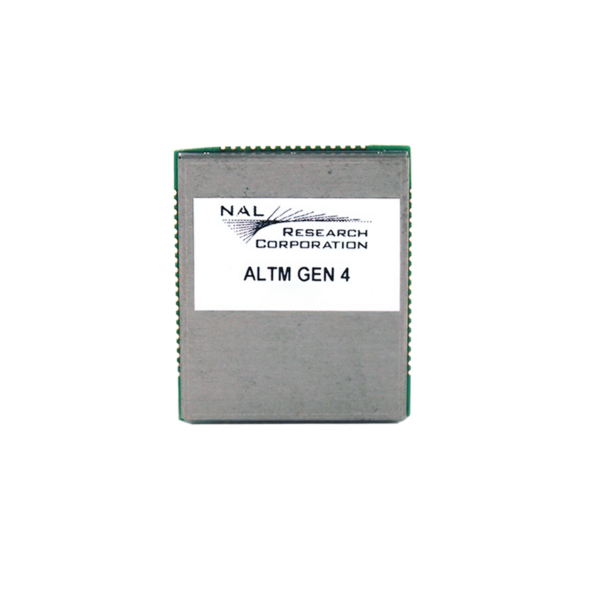

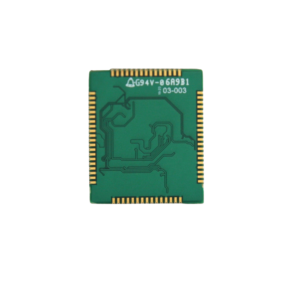

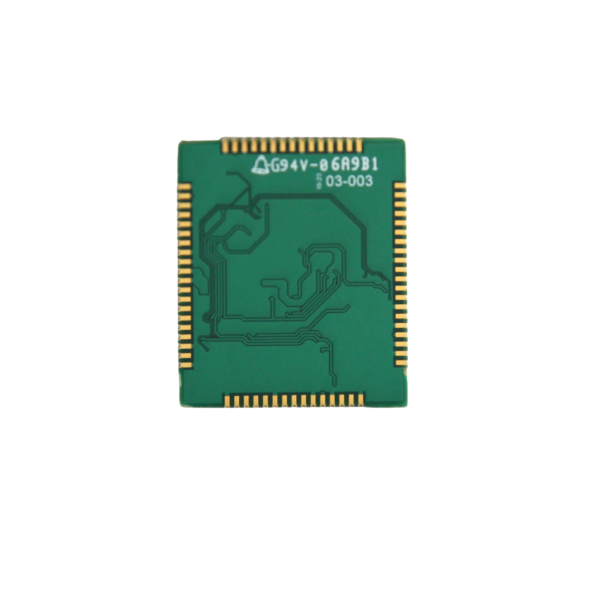

Alternative Location & Timing Module GEN4 (ALTM GEN4) is an APNT by Naltec solution providing both Iridium PNT and GNSS positioning and timing. This highly integrated System-on-Module (SoM) product is the lowest size, weight, and power (SWaP) APNT receiver on the market.
Details
ALTM GEN4 is targeted for applications that require a small size without compromising performance. The ultra-miniature form factor integrates a complete GNSS and PNT solution including SAW Filter, LNA, TCXO, and Bias tee for active antennas on SoM. Incorporating ALTM GEN4 into customer designs is simple and straightforward due to the fully integrated design, single voltage supply, low-power consumption, and simple interface that maximizes performance even in harsh RF environments.
Features
- Solder-on-module design suited for multiple use cases
- Dual-band solution with L1 GPS and Iridium PNT
- Ideal for board-level integration of multiple PNT sources
- Support for optional external reference clock for improved 1-PPS holdover & accuracy
Technical Specifications
- Dimensions: 26.4 x 31.5 x 2.7mm
- Moisture Sensitivity: Level 3
- Input Voltage: 3 – 4 V (Supply) | 1.8V (I/O)
- Avg. Current Consumption: 210mA @ 5.0 VDC
- Operating Temp: -40°C to +85°C (-40°F to +185°F)
- Start-up Time: 4 – 6 Min. (warm)
- Static Accuracy: +/- 50m with open sky
- Dynamic Accuracy: <200m with open sky
- Power Consumption: 0.6W
- Supported Antennas: Active and passive
