ALTM-T

Provides a complementary APNT source to GPS/GNSS
Schedule a demo

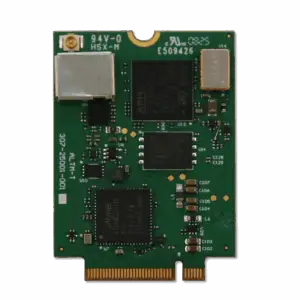

ALTM-T - Image 1

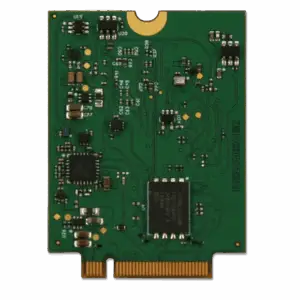

ALTM-T - Image 2

ALTM-T

ALTM-T

Alternative Location and Timing Module-T (ALTM-T) delivers reliable, continuous access to assured positioning, navigation, and timing (APNT) information. NAL Technologies’ ALTM-T is ideal for applications demanding precise positioning, navigation, timing, and redundancy with other sources of APNT.

Details
ALTM-T provides a complementary APNT source to GPS/GNSS. The ALTM-T Iridium STL® receiver leverages a signal approximately 1,000 times stronger than GPS/GNSS and can penetrate indoor environments as well as intentional and unintentional GNSS interference. This low-SWaP module combines a satellite receiver, a UART serial port for data I/O, 3.3V power amplifier for active antennas, and a 1-PPS timing signal output.
  •  Integrated power amplifier for 3.3V active antenna
  • Optional 10 or 26 MHz external 1.8V or 3.3V reference clock input
  • USB 2.1 per M.2 specifications
  • All input/output is 1.8V and via M.2 GPIO pins
  • 1 PPS output and NMEA 0813 messaging
  • 511mW power consumption and size < 13 cm²
  • Size: 30 x 42 mm (1.1811” x 1.65”) M.2 Type 3042-D5-B
  • Weight: 4g
  • Interface Connector: PCIe M.2 B-Key Standard
  • Mating Connector: TE Connectivity 2199230-3
  • STL RF Connector: U.FL Connector Receptacle. Male, Surface Mount
  • Mounting: JAE Electronics SM3ZS067U410- NUT1-R1200
  • Operating Temperature: -21°C to +60°C
  • Input Voltage Range: 3.3V+-5%
