Enables continuous access to location, velocity, and timing information, even in GPS-challenged environments…

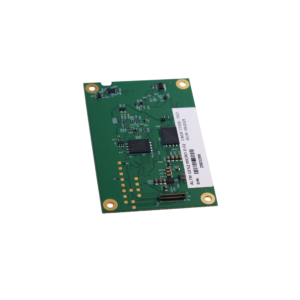

ALTM Micro-D
Provides accurate positioning, navigation, and timing (PNT) information
ALTM Micro-D
ALTM Micro-D

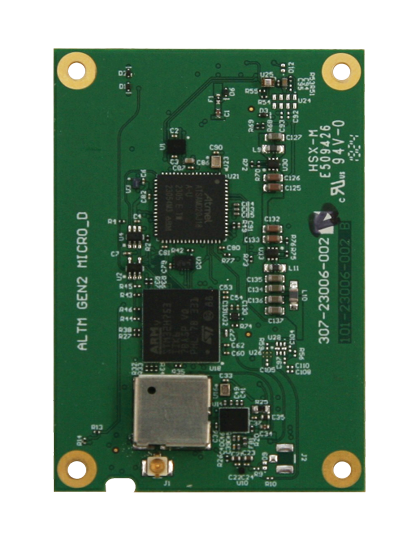

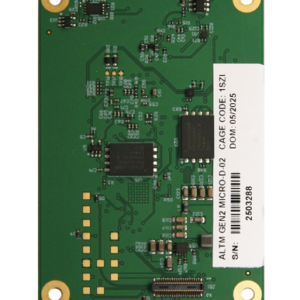

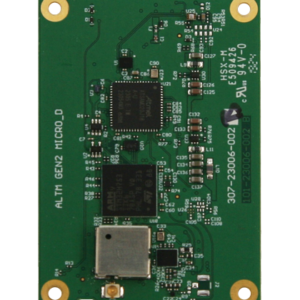

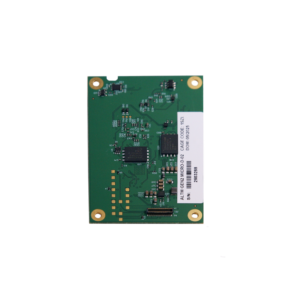

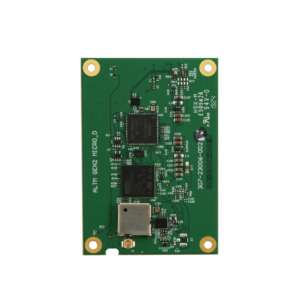

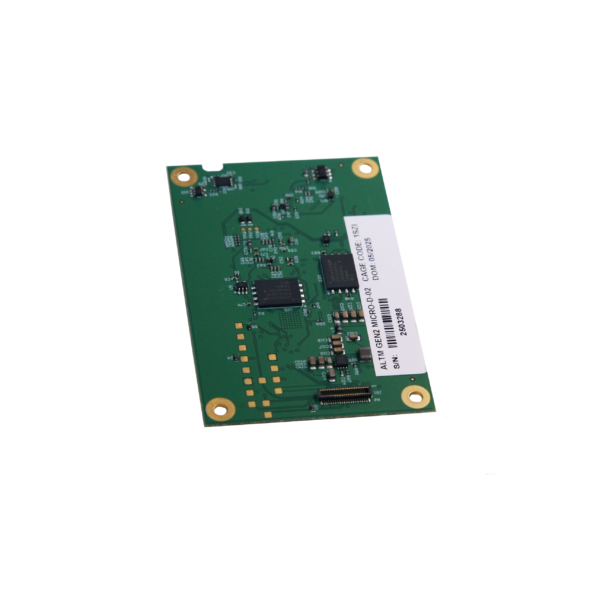

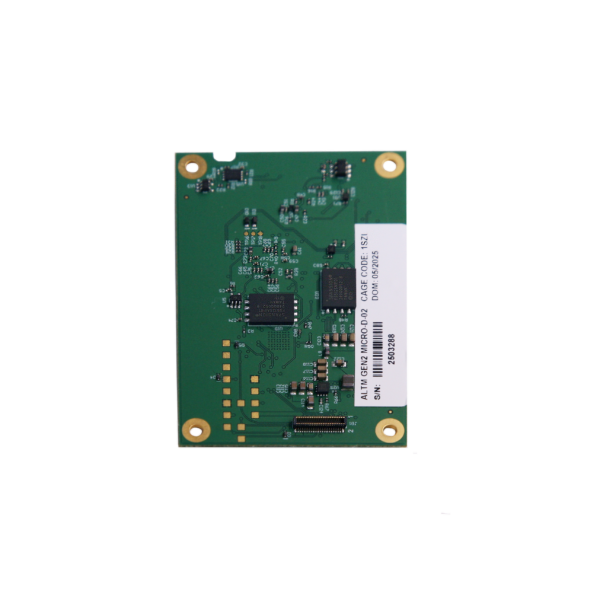

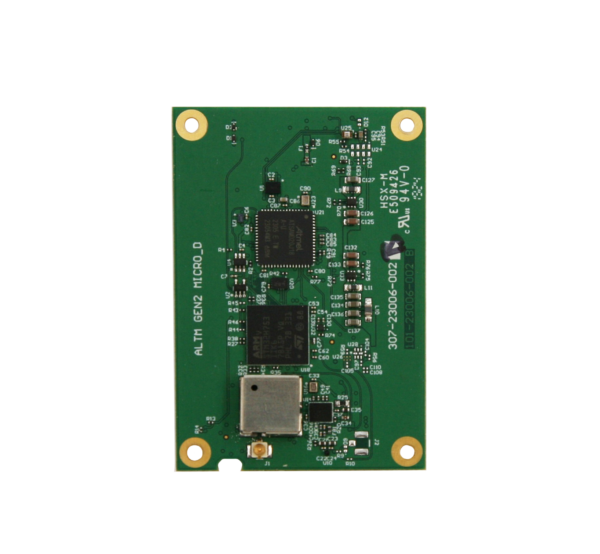

Alternative Location and Timing Module Micro-D (ALTM Micro-D) is an APNT by Naltec solution offering reliable, continuous access to positioning and location information. Naltec’s ALTM Micro-D is ideal for applications such as critical infrastructure, uncrewed systems, asset and personnel tracking, and maritime, aviation, and vehicle navigation.
Details
ALTM Micro-D leverages a signal 1000x stronger than GNSS/GPS to effectively operate in GNSS-denied areas, including indoors and jamming/spoofing environments. This embeddable, low size, weight, and power (SWaP) PNT module combines a satellite receiver, UART for serial port input for high-accuracy commercial or military GPS, UART serial port for data I/O, and a 1-PPS timing signal. Pair ALTM Micro-D with a versatile Naltec SBD modem for a complete global asset tracking solution that provides resilient timing, location, and data.
Features
- Highest U.S. DoD Technology Readiness Level (TRL) of 9
- Choice of IS-GPS-153* or NMEA message format
- External GNSS PNT input combined with integrity checking & blended decision logic
- Low-data processing latency at high-burst rates
Technical Specifications
- Size: 2.425” x 1.675” x 0.177” (61.6 x 42.5 x 4.50 mm)
- Weight: 0.26 oz (7.37g)
- Operating temperature: -40°F to +185°F, rated (-40°C to +85°C, rated)
- Input voltage range: 4.0 – 6.25 VDC
- Average power: 573 ± 10 mW
- Average current consumption: 115mA @ 5V
